Texas Instruments
TMP103HYFFT
±2°C Digital temperature sensor with I2C/SMBus capable of 1.4V in WCSP 4-DSBGA -40 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP103HYFFT technical specifications.
General
| Height | 0.325mm |
| Interface | I2C, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 0.79mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 1.4V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Operating Supply Current | 3uA |
| Output Current | 2mA |
| Output Type | I2C, Digital |
| Packaging | Tape and Reel |
| Quiescent Current | 1.5uA |
| Radiation Hardening | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Width | 0.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMP103HYFFT Datasheet
Download the complete datasheet for Texas Instruments TMP103HYFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

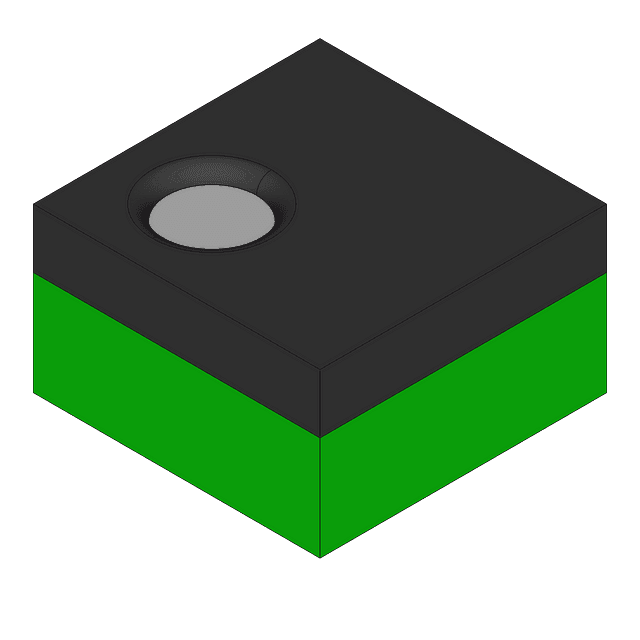

Product Images
