32-bit RISC microcontroller featuring a 56MHz PowerPC core. This surface mount device offers 512KB FLASH memory and 32KB RAM, with an access time of 56µs. Integrated peripherals include SPI, CAN, UART, SCI, USART, EBI/EMI interfaces, POR, PWM, and a watchdog timer. Operating supply voltage ranges from 4.75V to 5.25V, supporting up to 5V I/O. Packaged in a 388-pin BGA, it operates between -40°C and 125°C.
Frequency56MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MPC564MZP56 technical specifications.
General
| Access Time | 56us |
| Package/Case | BGA |
| Core Architecture | PowerPC |
| Data Bus Width | 32b |
| Frequency | 56MHz |
| Halogen Free | Not Halogen Free |
| Interface | SPI, CAN, UART, SCI, USART, EBI/EMI |
| Lead Free | Contains Lead |
| Max Frequency | 56MHz |
| Max I/O Voltage | 5V |
| Max Operating Temperature | 125°C |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of I/Os | 56 |
| Number of Programmable I/O | 56 |
| Number of Timers/Counters | 2 |
| Operating Supply Voltage | 5V |
| Oscillator Type | External |
| Package Quantity | 200 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT |
| RAM Size | 32KB |
| RoHS Compliant | No |
| Series | MPC5xx |
| Watchdog Timer | Yes |
| Weight | 0.086451oz |
Compliance
| RoHS | Not Compliant |
Datasheet
NXP MPC564MZP56 Datasheet
Download the complete datasheet for NXP MPC564MZP56 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

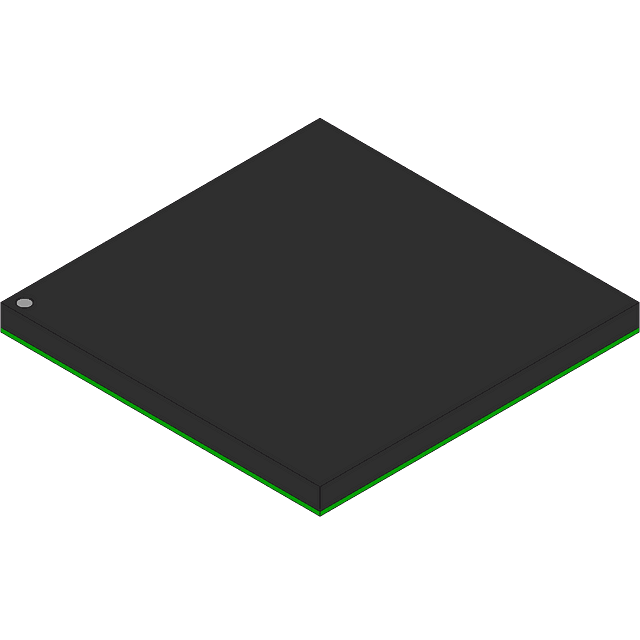

Product Images
