Surface mount logic IC output optocoupler featuring 1-element, unidirectional signal transmission with a 3.75kV isolation voltage. This push-pull output device offers a high output current of 2A, a forward current of 25mA, and a maximum power dissipation of 295mW. Operating across a temperature range of -40°C to 100°C, it boasts a propagation delay of 500ns and is RoHS compliant. Approvals include CSA, UR, IEC, and EN.
PackageSMD/SMT
MountingSurface Mount
Power295mW
Quick Jump:
Technical Specifications
Broadcom HCPL-3120-360E technical specifications.
General
| Approvals | CSA, UR, IEC, EN |
| Package/Case | SMD/SMT |
| Direction | Unidirectional |
| Fall Time | 0.1us |
| Forward Current | 25mA |
| High Level Output Current | 2A |
| Input Current | 16mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Low Level Output Current | 2A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Power Dissipation | 295mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Type | PUSH-PULL |
| Output Voltage | 30V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 295mW |
| Propagation Delay | 500ns |
| Pulse Width Distortion (PWD) | 300ns |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 500ns |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HCPL-3120-360E Datasheet
Download the complete datasheet for Broadcom HCPL-3120-360E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

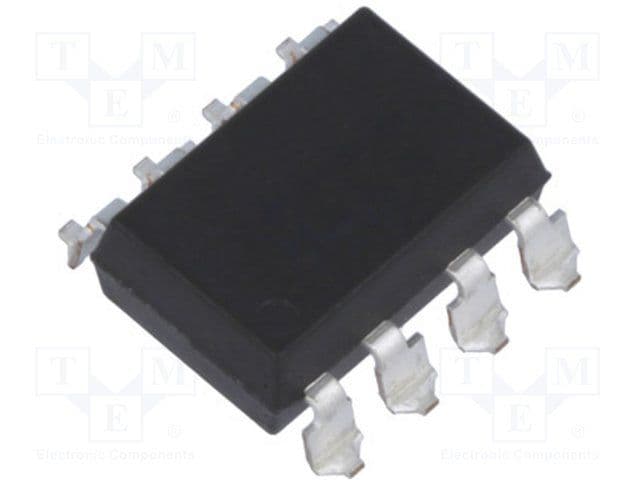

Product Images
