2.4GHz IEEE 802.15.4 and Zigbee wireless MCU with 250Kbps data rate. Features 8KB RAM, 21 GPIO, and SPI, USB, USART interfaces. Operates from 2V to 3.6V supply, with a temperature range of -40°C to 125°C. Offers 4.5dBm output power and -97dBm sensitivity. Surface mount VQFN package with gold contact plating.
Frequency2.4GHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2531F128RHAR technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Current - Receiving | 24.3mA |
| Current - Transmitting | 33.5mA |
| Data Rate | 250Kbps |
| Frequency | 2.4GHz |
| Interface | SPI, USB, USART |
| Lead Free | Lead Free |
| Max Frequency | 2.507GHz |
| Min Frequency | 2.394GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8KB |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Number of GPIO | 21 |
| Number of UART Channels | 1 |
| Output Power (dBm) | 4.5dBm |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | -97dBm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CC2531F128RHAR Datasheet
Download the complete datasheet for Texas Instruments CC2531F128RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

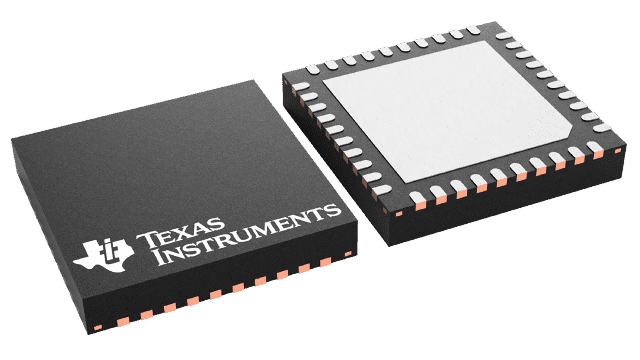

Product Images
