Single-channel optocoupler with 5kV isolation voltage, designed for gate driver applications. Features a 5.5A maximum output current and 30V output voltage, with a 150ns pulse width distortion. Operates across a -40°C to 105°C temperature range, suitable for surface mount installation in a 16-pin SOIC package. Approvals include CSA, UR, IEC, EN, and UL.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPL-339J-000E technical specifications.
General
| Approvals | CSA, UR, IEC, EN, UL |
| Package/Case | SOIC |
| Fall Time | 40ns |
| Forward Current | 10mA |
| High Level Output Current | 1A |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Low Level Output Current | 1A |
| Max Input Current | 10mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5.5A |
| Max Power Dissipation | 600mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 5.5A |
| Output Voltage | 30V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Propagation Delay | 300ns |
| Pulse Width Distortion (PWD) | 150ns |
| Reach SVHC Compliant | No |
| Turn-On Delay Time | 0.3us |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ACPL-339J-000E Datasheet
Download the complete datasheet for Broadcom ACPL-339J-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

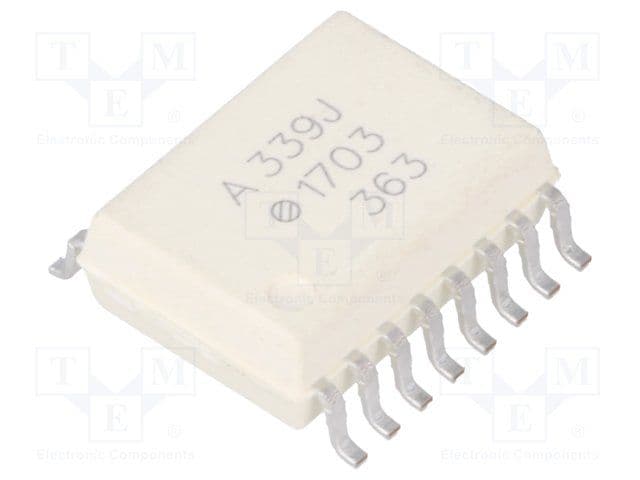

Product Images
