PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics A7985A technical specifications.
General
| Package/Case | HSOP |
| Max Input Voltage | 38V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 38V |
| Min Output Voltage | 600mV |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 38V |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 38V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics A7985A Datasheet
Download the complete datasheet for Stmicroelectronics A7985A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

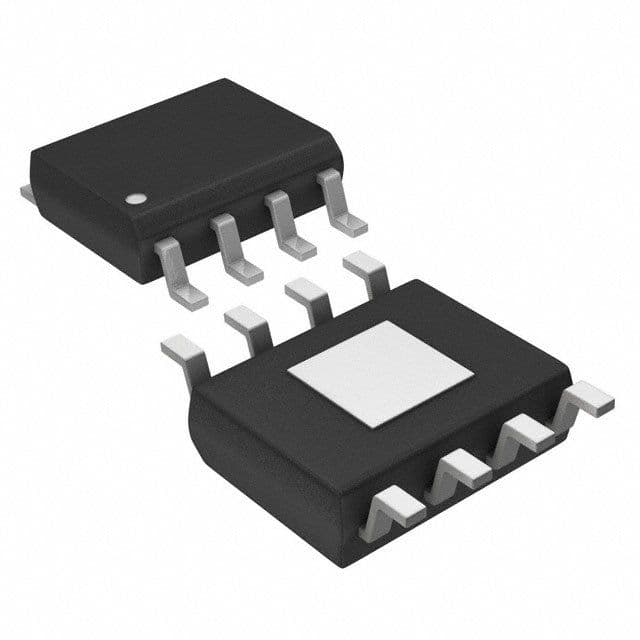

Product Images
