Single-output bench power supply offering adjustable voltage from 1V to 36V and a maximum output current of 3A. Features an LCD display for clear voltage and current readings, delivering up to 100W of output power. This compact unit, measuring 9.8 inches in length, 2.8 inches in width, and 6 inches in height, weighs 4.4lb and includes a power cord. Maximum power dissipation is rated at 108W.
Power100W
Quick Jump:
Technical Specifications
B&K Precision 1550 technical specifications.
General
| Current - Output 1 | 3A |
| Display Type | LCD |
| Height | 6inch |
| Length | 9.8inch |
| Max Power Dissipation | 108W |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Power | 100W |
| Output Voltage | 36V |
| Packaging | Bulk |
| Series | 1550 |
| Voltage - Output 1 | 36V |
| Weight | 4.4lb |
| Width | 2.8inch |
| Wire/Cable Type | Power Cord |
Compliance
| RoHS | Not Compliant |
Datasheet
B&K Precision 1550 Datasheet
Download the complete datasheet for B&K Precision 1550 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

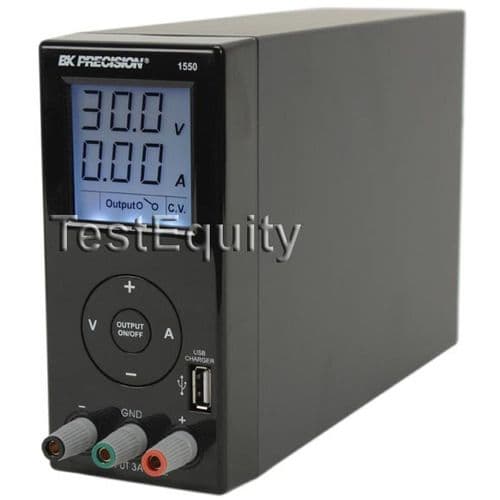

Product Images
