Single-channel gate driver IC featuring 4-A peak output current and a 5-V undervoltage lockout (UVLO). This surface-mount component offers a 13-ns propagation delay and 11-ns fall time, operating from a 4.5-V to 18-V supply range. Packaged in a compact SOT-23, it supports a wide temperature range of -40°C to 140°C and is RoHS compliant.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC27517DBVT technical specifications.
General
| Package/Case | SOT-23 |
| Channel Type | Single |
| Fall Time | 11ns |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 12V |
| Output Current | 4A |
| Packaging | Tape and Reel |
| Propagation Delay | 30ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1.2mm |
| Turn-On Delay Time | 30ns |
| Weight | 0.001058oz |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCC27517DBVT Datasheet
Download the complete datasheet for Texas Instruments UCC27517DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

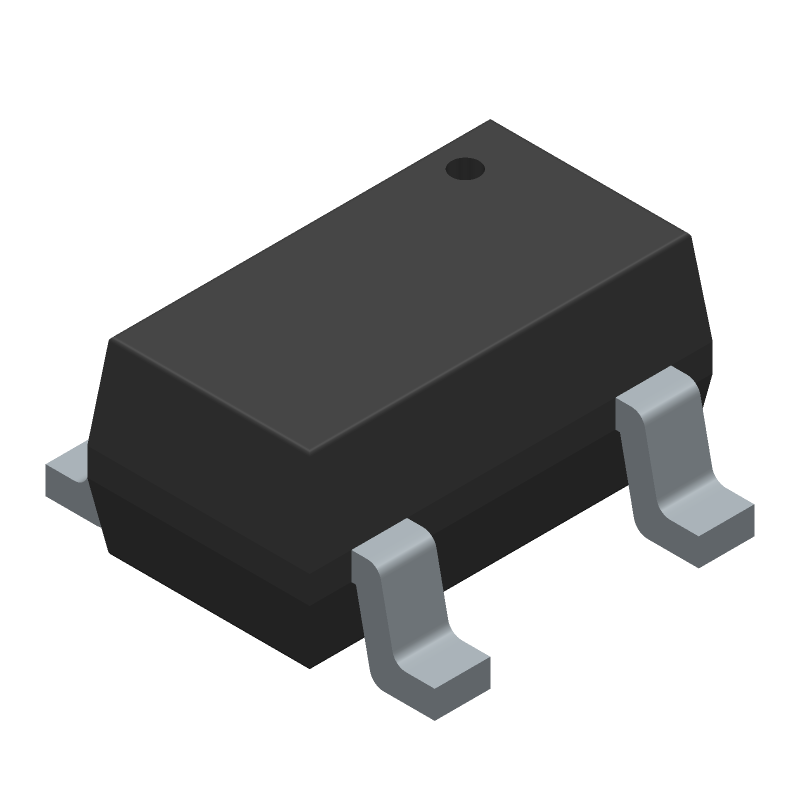

Product Images
