Infrared (IR) LED emitter featuring a 950nm wavelength and GAAS technology. This through-hole component offers a 44° viewing angle and a radiant intensity of 190mW/sr. It operates with a forward current of 150mA and a maximum power dissipation of 210mW, with a reverse voltage rating of 5V. The emitter is housed in a T-1 3/4 package with a circular, diffused lens, designed for top mounting. It is RoHS compliant and lead-free, suitable for operation across a temperature range of -55°C to 85°C.
PackageRadial
MountingThrough Hole
Power210mW
Quick Jump:
Technical Specifications
Vishay TSUS5402 technical specifications.
General
| Package/Case | Radial |
| Depth | 5.8mm |
| Forward Current | 150mA |
| Height | 8.7mm |
| Lead Free | Lead Free |
| Length | 5.8mm |
| Lens Style | Circular, Diffused |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Orientation | Top View |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Power Dissipation | 210mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Technology | GAAS |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 44° |
| Wavelength | 950nm |
| Width | 5.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TSUS5402 Datasheet
Download the complete datasheet for Vishay TSUS5402 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

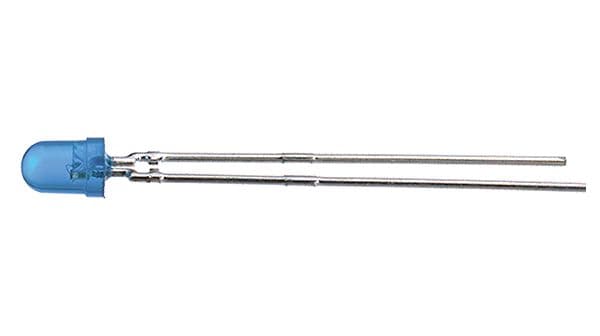

Product Images
