Integrated power solution for DC-DC conversion, this synchronous buck regulator offers adjustable output voltage from 600mV to 5.5V with a maximum output current of 10A. Operating across an input voltage range of 2.95V to 17V, it achieves up to 95% efficiency. The surface mountable BQFN package measures 10.15mm x 10.15mm x 4.35mm and operates from -40°C to 85°C. This RoHS compliant component is supplied on tape and reel.
PackageBQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS84A20RVQT technical specifications.
General
| Package/Case | BQFN |
| Efficiency | 95% |
| Height | 4.35mm |
| Lead Free | Contains Lead |
| Length | 10.15mm |
| Max Input Voltage | 17V |
| Min Input Voltage | 2.95V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 600mV |
| Min Supply Voltage | 2.95V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 10A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Eco-Mode™ |
| Synchronous Rectifier | Yes |
| Width | 10.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS84A20RVQT Datasheet
Download the complete datasheet for Texas Instruments TPS84A20RVQT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

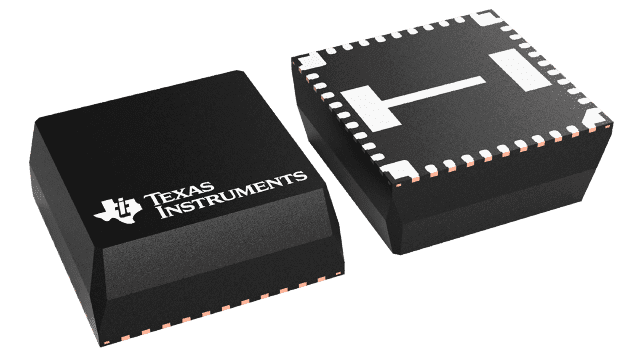

Product Images
