32-bit ARM Cortex-M3 microcontroller featuring 32KB Flash memory and a 72MHz CPU. This MCU offers 26 programmable I/Os, 8 PWM channels, and multiple interfaces including I2C, SPI, USB, and CAN. Operating from 2V to 3.6V, it supports a wide temperature range of -40°C to 105°C. The UFQFPN package is SMD/SMT terminated, with dimensions of 6mm x 6.125mm x 0.95mm. Integrated peripherals include POR, WDT, DMA, and a temperature sensor.
Frequency72MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103T6U6 technical specifications.
General
| Package/Case | UFQFPN |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Density | 32KB |
| Frequency | 72MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, USB, CAN, USART, IrDA, UART |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 72MHz |
| Max Operating Temperature | 105°C |
| Max Power Dissipation | 1.11W |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Number of ADC Channels | 10 |
| Number of Bits | 32 |
| Number of I/Os | 26 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 26 |
| Number of PWM Channels | 8 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 2940 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, Temp Sensor |
| Radiation Hardening | No |
| RAM Size | 10KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32F1 |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 6.125mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F103T6U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103T6U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

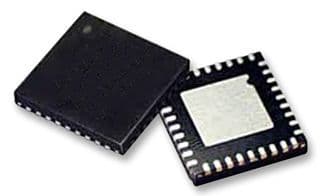

Product Images
