Enclosed AC/DC power supply delivering 24VDC at 20A, with a maximum output power of 480W. Features include 91% efficiency, 3kV isolation voltage, and a wide input voltage range of 100-240VAC. Operates across an extended temperature range from -25°C to 60°C. This chassis mount unit supports DIN rail mounting and is CE, TUV, and cURus approved, with RoHS compliance.
Package100
MountingDIN Rail
Power480W
Quick Jump:
Technical Specifications
Omron S8VK-C48024 technical specifications.
General
| Approvals | CE, TUV, cURus |
| Package/Case | 100 |
| Current - Output 1 | 20A |
| Depth | 150mm |
| Efficiency | 91% |
| Height | 4.92inch |
| Isolation Voltage | 3kV |
| Length | 5.91inch |
| Max Input Voltage | 240V |
| Min Input Voltage | 100V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 20A |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Max Power Dissipation | 480W |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Output Current | 20A |
| Output Power | 480W |
| RoHS Compliant | Yes |
| Series | S8VK-C |
| Voltage - Output 1 | 24V |
| Weight | 1550g |
| Width | 3.54inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron S8VK-C48024 Datasheet
Download the complete datasheet for Omron S8VK-C48024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

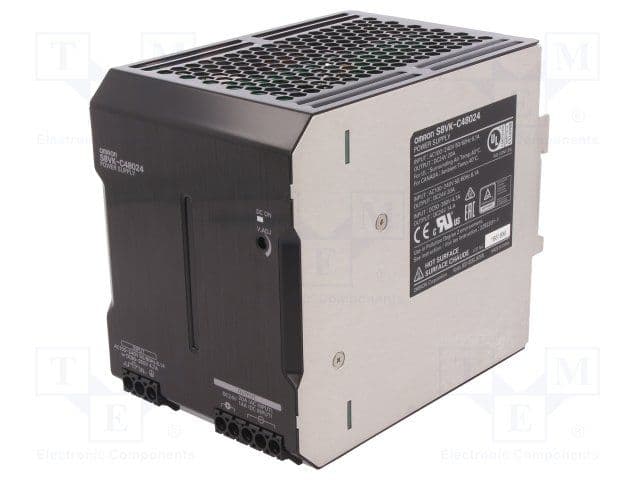

Product Images
