Enclosed AC/DC power supply delivering 60W output power with a single 24VDC, 2.5A output. Features 88% efficiency and 3kV isolation voltage, operating across a 100-240VAC input range. Designed for DIN rail mounting, this component offers a wide operating temperature range of -25°C to 60°C and is CE, TUV, and cURus approved. RoHS compliant with dimensions of 110mm depth, 3.54-inch height, 4.33-inch length, and 1.26-inch width.
Package100
MountingDIN Rail
Power60W
Quick Jump:
Technical Specifications
Omron S8VK-C06024 technical specifications.
General
| Approvals | CE, TUV, cURus |
| Package/Case | 100 |
| Current - Output 1 | 2.5A |
| Depth | 110mm |
| Efficiency | 88% |
| Height | 3.54inch |
| Isolation Voltage | 3kV |
| Length | 4.33inch |
| Max Input Voltage | 240V |
| Min Input Voltage | 100V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 2.5A |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Max Power Dissipation | 60W |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 60W |
| RoHS Compliant | Yes |
| Series | S8VK-C |
| Voltage - Output 1 | 24V |
| Weight | 260g |
| Width | 1.26inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron S8VK-C06024 Datasheet
Download the complete datasheet for Omron S8VK-C06024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

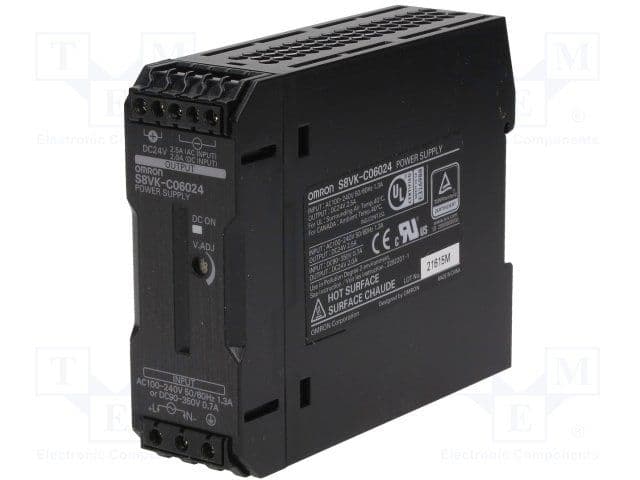

Product Images
