Surface mount coin cell battery retainer for single CR1220 batteries. Features horizontal SMT termination and bronze contacts. Constructed from polyphenylene material, operating within a -55°C to 105°C temperature range. Supplied in tape and reel packaging, with 500 units per package. RoHS compliant.
PackageSMD/SMT
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Harwin S8411-45R technical specifications.
General
| Package/Case | SMD/SMT |
| Contact Plating | Bronze |
| Material | Polyphenylene |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Number of Batteries | 1 |
| Number of Cells | 1 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | S8411R |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Harwin S8411-45R Datasheet
Download the complete datasheet for Harwin S8411-45R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

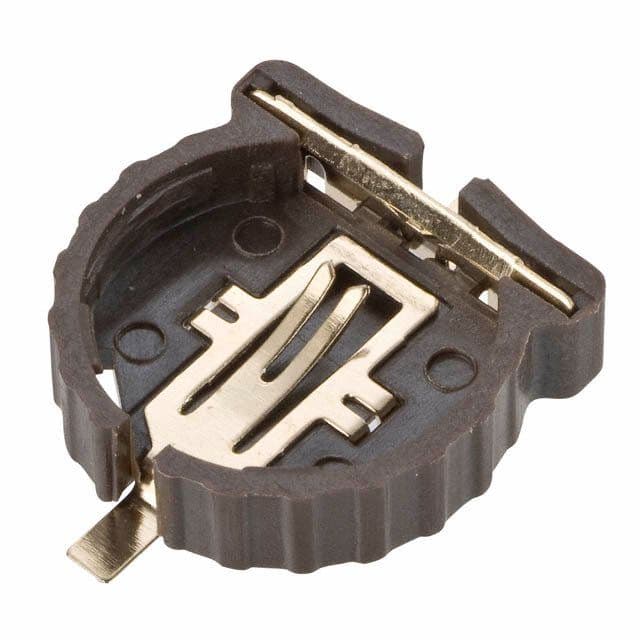

Product Images
