Digital temperature sensor with 12-bit resolution, operating from 3V to 5.5V with a maximum supply voltage of 5.5V. Features I2C, SMBus, and 2-Wire serial interfaces, with a typical operating supply current of 800µA. This surface mount component is housed in a compact DFN8 2.0x2.0x0.9mm package, suitable for temperatures ranging from -55°C to 125°C. It is halogen-free, lead-free, and RoHS compliant, supplied in a 3000-piece tape and reel.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NCT75MNR2G technical specifications.
General
| Package/Case | DFN |
| Halogen Free | Halogen Free |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 3V |
| Mount | Surface Mount |
| Operating Supply Current | 800uA |
| Operating Supply Voltage | 5.5V |
| Output Type | Digital, I2C |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Resolution | 12b |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCT75MNR2G Datasheet
Download the complete datasheet for Onsemi NCT75MNR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

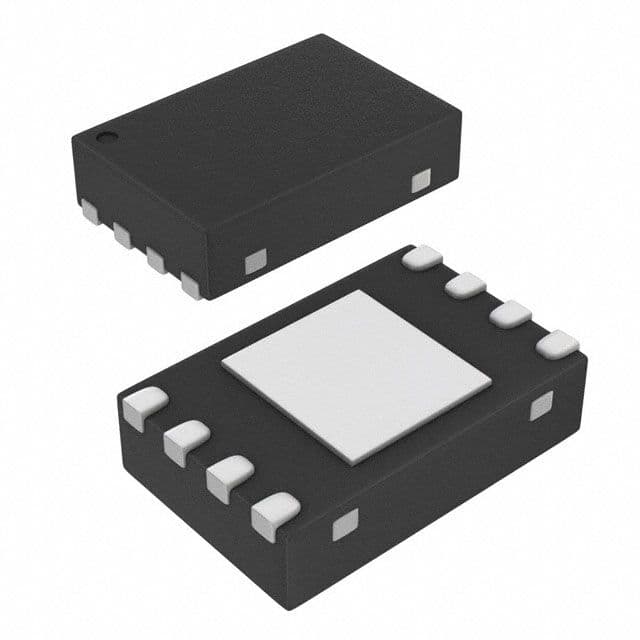

Product Images
