Surface mountable switching regulator IC with adjustable output voltage up to 12V and 170mA output current. Features a maximum duty cycle of 72%, 70kHz switching frequency, and operates from 85V to 265V AC input. This power management IC supports buck-boost and flyback topologies, with a maximum operating temperature of 150°C. Packaged in PDSO8 (SMD-8/7) with dimensions of 9.83mm length, 6.6mm width, and 3.68mm height. RoHS compliant and lead-free.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Power Integrations LNK304GN technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 3.68mm |
| Lead Free | Lead Free |
| Length | 9.83mm |
| Max Duty Cycle | 72% |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 12mW |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 200uA |
| Output Current | 170mA |
| Output Type | Adjustable |
| Output Voltage | 12V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LinkSwitch®-TN |
| Topology | Buck-Boost, Flyback |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Power Integrations LNK304GN Datasheet
Download the complete datasheet for Power Integrations LNK304GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

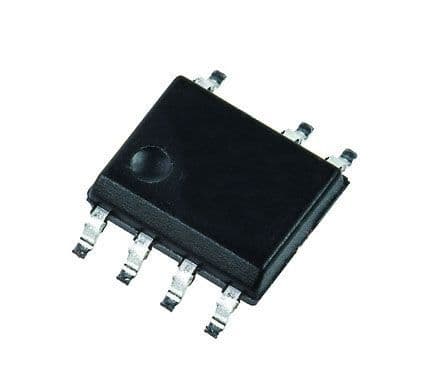

Product Images
