Constant On-Time Non-Synchronous Buck Regulator, featuring an 8V to 75V wide input voltage range and 1A maximum output current. This power management IC offers an adjustable output voltage up to 70V with a minimum of 2.5V, achieving up to 91% efficiency. Packaged in a 14-HTSSOP with dimensions of 5mm x 4.4mm x 1.2mm, it operates from -40°C to 125°C. The device is designed for surface mounting and includes a quiescent current of 650µA.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5010MH technical specifications.
General
| Package/Case | HTSSOP |
| Efficiency | 91% |
| Height | 1.2mm |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Input Voltage | 75V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 70V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 7.4V |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 70V |
| Package Quantity | 94 |
| Packaging | Rail/Tube |
| Quiescent Current | 650uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Synchronous Rectifier | No |
| Thickness | 1mm |
| Width | 4.4mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM5010MH Datasheet
Download the complete datasheet for Texas Instruments LM5010MH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

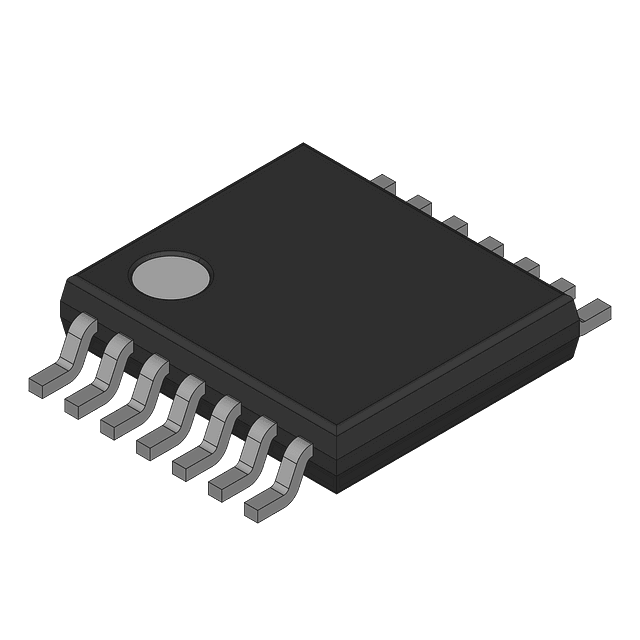

Product Images
