Onsemi
FODM8061V
High Noise Immunity, 3.3V/5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler, 3000-TUBE
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FODM8061V technical specifications.
General
| Package/Case | SMD/SMT |
| Data Rate | 10Mbps |
| Fall Time | 10ns |
| Input Type | DC |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 3000 |
| Packaging | Rail/Tube |
| Propagation Delay | 43ns |
| RoHS Compliant | Yes |
| Series | OPTOPLANAR® |
| Weight | 0.18133333g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FODM8061V Datasheet
Download the complete datasheet for Onsemi FODM8061V to view detailed technical specifications.
No datasheet is available for this part.

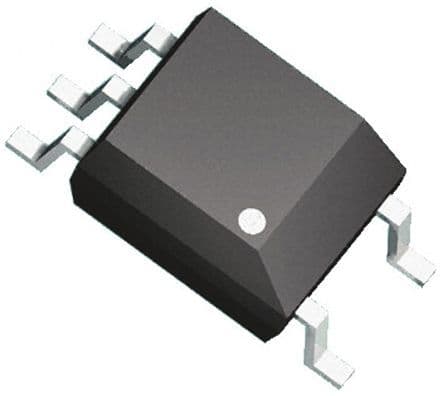

Product Images
