Surface mount phototransistor optocoupler featuring 5kV isolation voltage and 200mV collector-emitter saturation voltage. Delivers a 600% current transfer ratio with a maximum forward current of 50mA. Operates across a -55°C to 110°C temperature range, with a maximum output voltage of 70V and 200mW power dissipation. Packaged in a 4-pin DIP configuration, this RoHS compliant component is suitable for general optoelectronic isolation applications.
PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Onsemi FOD817DS technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 200mV |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 600% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Height | 3.85mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Package Quantity | 2000 |
| Packaging | Box |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Weight | 0g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FOD817DS Datasheet
Download the complete datasheet for Onsemi FOD817DS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

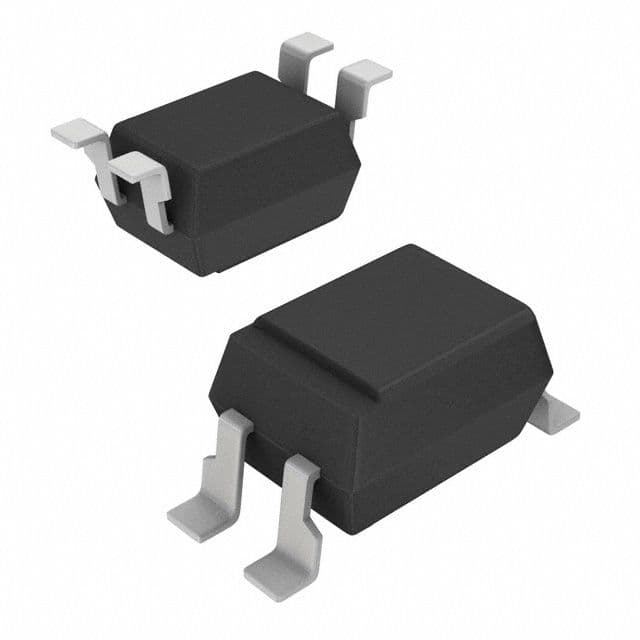

Product Images
