Technical Specifications
Onsemi FOD817BW technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 200mV |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 260% |
| Input Type | DC |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 200mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FOD817BW Datasheet
Download the complete datasheet for Onsemi FOD817BW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

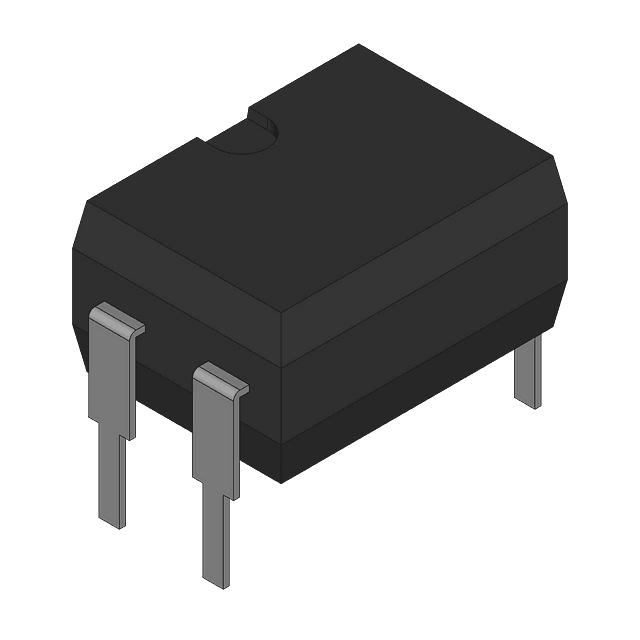

Product Images
