Dual-channel, 12-bit digital-to-analog converter (DAC) with a 500 MS/s conversion rate. Features include 0.5 LSB integral nonlinearity, 79 dB spurious-free dynamic range, and a 0.01 µs settling time. Supports DDR, LVDS, and parallel interfaces. Operates from a 3V to 3.6V supply with a typical 3.3V operating voltage. Packaged in a 48-VQFN with gold contact plating, this lead-free, RoHS-compliant component is supplied on tape and reel.
PackageVQFN
Current63mA
Power270mW
Quick Jump:
Technical Specifications
Texas Instruments DAC3162IRGZR technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 500MS/s |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | DDR, LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Bits | 12 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Output Polarity | Unipolar |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Consumption | 270mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 500000000S/s |
| Series | DAC3162 |
| Settling Time | 0.01us |
| Spurious-free dynamic range (SFDR) | 79dB |
| Supply Current | 63mA |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DAC3162IRGZR Datasheet
Download the complete datasheet for Texas Instruments DAC3162IRGZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

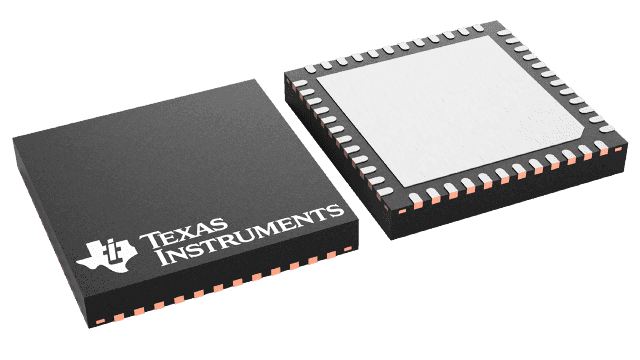

Product Images
