8-bit, 140MS/s Analog-to-Digital Converter (ADC) for LCD display applications. Features a 500MHz -3dB bandwidth, 3 analog inputs, and 3 A/D converters. Operates with a 2.2V to 3.6V supply voltage, consuming 265mA at 3.3V. Offers parallel, analog, and serial interfaces with a 46.2dB signal-to-noise ratio. Packaged in an LQFP surface-mount case with dimensions of 14.1mm (L) x 20.1mm (W) x 2.8mm (H).
PackageLQFP
MountingSurface Mount
PolarityBipolar
Power650mW
Quick Jump:
Technical Specifications
Analog Devices AD9884AKSZ-140 technical specifications.
General
| -3db Bandwidth | 500MHz |
| Package/Case | LQFP |
| Differential Nonlinearity | 1.25LSB |
| Display Type | LCD |
| Height | 2.8mm |
| Integral Nonlinearity (INL) | 2.5LSB |
| Interface | Parallel, Analog, Serial |
| Lead Free | Contains Lead |
| Length | 14.1mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 775mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of A/D Converters | 3 |
| Number of Analog Inputs | 3 |
| Number of Channels | 3 |
| Number of Converters | 3 |
| Number of Elements | 3 |
| Operating Supply Current | 265mA |
| Operating Supply Voltage | 3.3V |
| Output Voltage | 1.25V |
| Package Quantity | 1 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 650mW |
| Power Dissipation | 775W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 140MS/s |
| Signal to Noise Ratio (SNR) | 46.2dB |
| Width | 20.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9884AKSZ-140 Datasheet
Download the complete datasheet for Analog Devices AD9884AKSZ-140 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

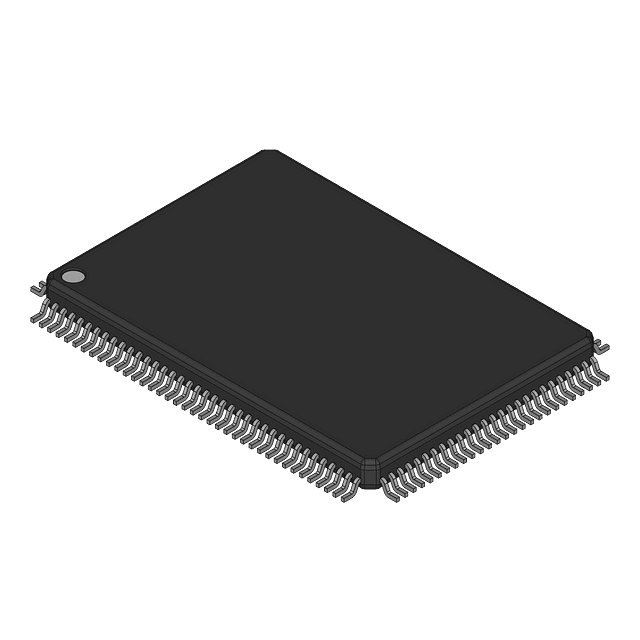

Product Images
