Quad IF Receiver with 11-bit resolution and 76dB Signal to Noise Ratio, featuring a 65MHz bandwidth and 200MS/s sampling rate. This integrated circuit offers four analog inputs and four A/D converters, operating with a 1.8V supply voltage. Designed with a BGA package, it boasts 0.4LSB Differential Nonlinearity and 0.55LSB Integral Nonlinearity, with a maximum input voltage of 2V. Operating across a temperature range of -40°C to 85°C, this RoHS compliant component is suitable for demanding RF and wireless applications.
Frequency65MHz
PackageBGA
PolarityUnipolar
Quick Jump:
Technical Specifications
Analog Devices AD6657ABBCZ technical specifications.
General
| Package/Case | BGA |
| Differential Nonlinearity | 0.4LSB |
| Frequency | 65MHz |
| Height | 0.65mm |
| Integral Nonlinearity (INL) | 0.55LSB |
| Lead Free | Contains Lead |
| Length | 10.1mm |
| Logic Function | Receiver |
| Max Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Number of A/D Converters | 4 |
| Number of Analog Inputs | 4 |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 1 |
| Packaging | Tray |
| Polarity | Unipolar |
| Reach SVHC Compliant | No |
| Resolution | 11b |
| RoHS Compliant | Yes |
| Sampling Rate | 200MS/s |
| Signal to Noise Ratio (SNR) | 76dB |
| Supply Type | Single |
| Width | 10.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD6657ABBCZ Datasheet
Download the complete datasheet for Analog Devices AD6657ABBCZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

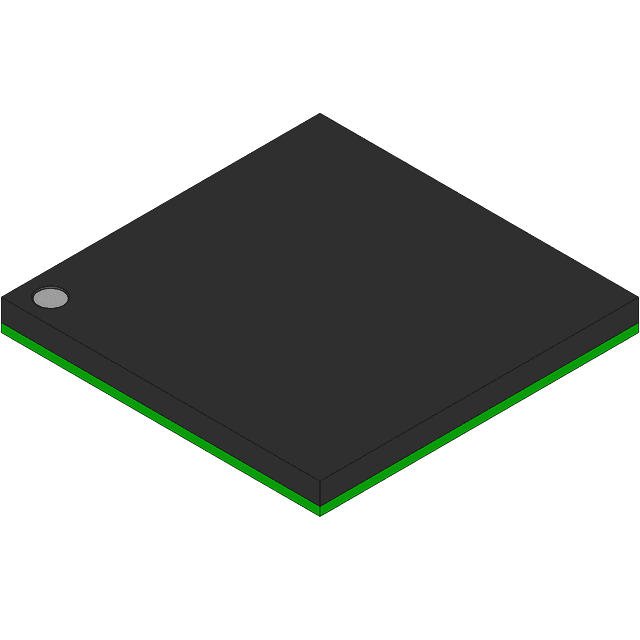

Product Images
