Texas Instruments
WL1837MODGIMOCT
WLAN+BTCombo Module IEEE 802.11a/b/g/n Bluetooth v4.1 100-Pin SMD Module
Frequency5GHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments WL1837MODGIMOCT technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Receiving | 85mA |
| Current - Transmitting | 510mA |
| Data Rate | 54Mbps |
| Frequency | 5GHz |
| Interface | SDIO, UART |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 4.8V |
| Min Supply Voltage | 2.9V |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Sensitivity | -95dBm |
| Series | WiLink™ |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments WL1837MODGIMOCT Datasheet
Download the complete datasheet for Texas Instruments WL1837MODGIMOCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

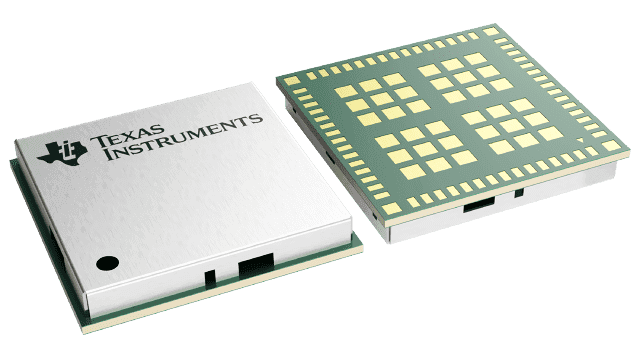

Product Images
