Combo wireless module supporting IEEE 802.11a/b/g/n standards and Bluetooth v4.1. Features SDIO and UART interfaces, operating across 2.4GHz and 5GHz frequencies up to 5.825GHz. This surface mount device offers a data rate of 54Mbps and a sensitivity of -95dBm. Power consumption includes 85mA receiving and 510mA transmitting, with a voltage range of 1.62V to 4.8V. The module operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency5GHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments WL1837MODGIMOCR technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Receiving | 85mA |
| Current - Transmitting | 510mA |
| Data Rate | 54Mbps |
| Frequency | 5GHz |
| Height | 2mm |
| Interface | SDIO, UART |
| Lead Free | Contains Lead |
| Length | 13.3mm |
| Max Frequency | 5.825GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.8W |
| Max Supply Voltage | 4.8V |
| Min Supply Voltage | 1.62V |
| Mount | Surface Mount |
| Number of GPIO | 7 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Sensitivity | -95dBm |
| Series | WiLink™ |
| Thickness | 2mm |
| Width | 13.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments WL1837MODGIMOCR Datasheet
Download the complete datasheet for Texas Instruments WL1837MODGIMOCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

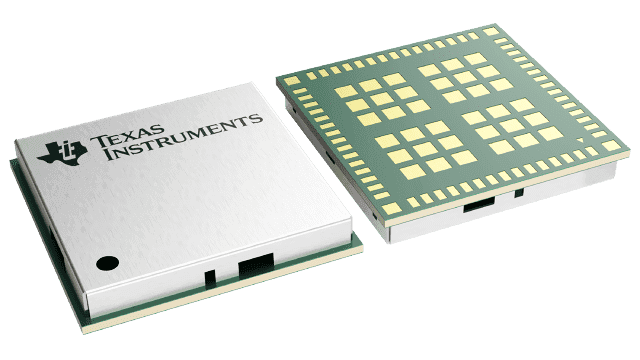

Product Images
