Texas Instruments
UCC28722DBVT
Low-Cost CVCC Flyback controller With primary-side regulation for bipolar Power Device 6-SOT-23 -40 to 125
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC28722DBVT technical specifications.
General
| Package/Case | SOT-23 |
| Fault Protection | Over Voltage |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 35V |
| Output Voltage | 5.9V |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Flyback |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCC28722DBVT Datasheet
Download the complete datasheet for Texas Instruments UCC28722DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

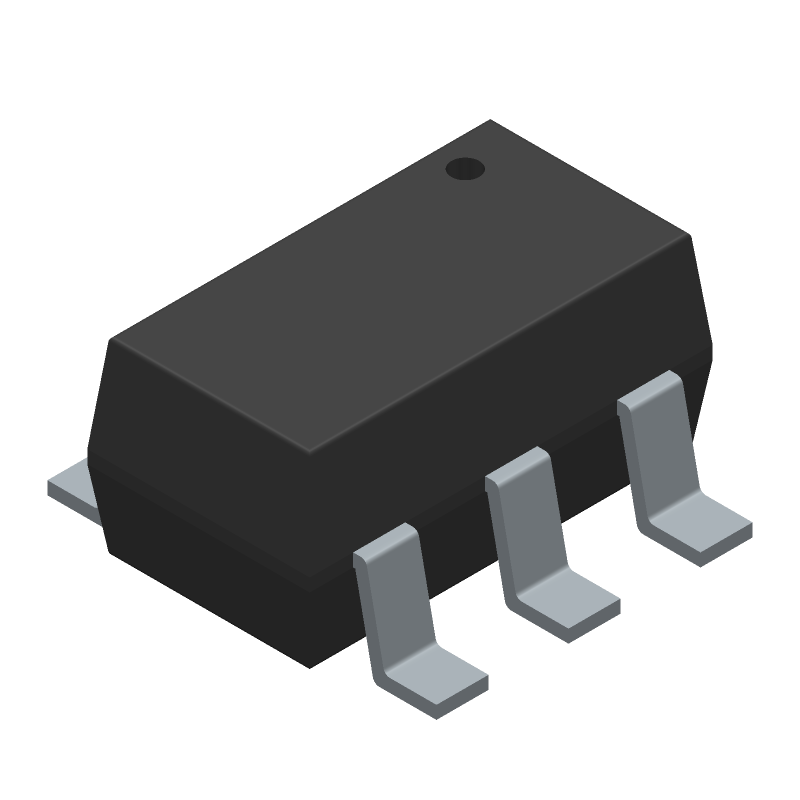

Product Images
