Texas Instruments
TPS59650RSLT
Dual Channel (3-Phase CPU / 2-Phase GPU) SVID, D-CAP+TM Step-Down Controller 48-VQFN -40 to 105
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS59650RSLT technical specifications.
General
| Package/Case | VQFN |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Input Voltage | 28V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 60A |
| Max Output Voltage | 6V |
| Min Output Voltage | 100mV |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current | 20A |
| Output Voltage | 1.52V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 5.5mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | D-CAP+™ |
| Weight | 0.004938oz |
| Width | 6.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS59650RSLT Datasheet
Download the complete datasheet for Texas Instruments TPS59650RSLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

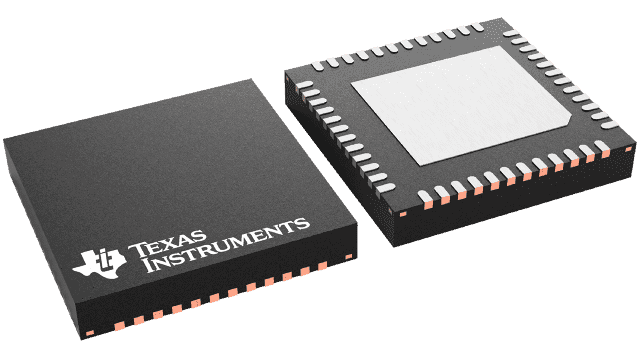

Product Images
