Programmable shunt voltage reference with 1% accuracy, adjustable output from 2.5V to 36V. Features low cathode current of 60µA and a maximum supply current of 40µA. Operates across a temperature range of -40°C to 85°C. Packaged in a 3-lead SOT-23 (TO-236) surface-mount package, supplied on a 3000-piece tape and reel. This RoHS and Halogen Free component offers a maximum output current of 100mA.
PackageSOT-23-3
Quick Jump:
Technical Specifications
Onsemi NCP431AISNT1G technical specifications.
General
| Accuracy | 1% |
| Package/Case | SOT-23-3 |
| Cathode Current | 60uA |
| Halogen Free | Halogen Free |
| Height | 1.01mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Input Voltage | 2.525V |
| Min Input Voltage | 2.475V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Min Output Voltage | 2.5V |
| Max Supply Current | 40uA |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 36V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reference Type | Shunt, Programmable, Adjustable |
| Reference Voltage | 2.5V |
| RoHS Compliant | Yes |
| Tolerance | 1% |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP431AISNT1G Datasheet
Download the complete datasheet for Onsemi NCP431AISNT1G to view detailed technical specifications.
No datasheet is available for this part.

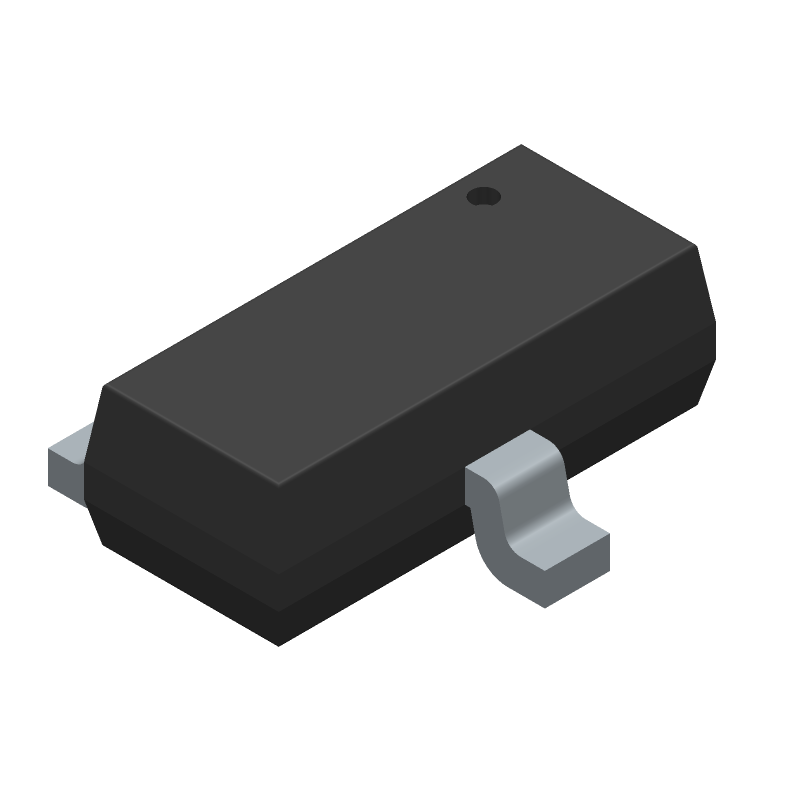

Product Images
