8-bit HC08 microcontroller featuring 8KB FLASH memory and 256B RAM. Operates at up to 3MHz with an 8-bit data bus. Includes USB interface, 13 I/Os, 37 programmable I/Os, 1 PWM channel, and 2 timers. Packaged in a PDIP with through-hole mounting, supporting a 4V to 5.5V operating supply voltage.
Frequency3MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
NXP MC68HC908JB8JPE technical specifications.
General
| Package/Case | PDIP |
| Core Architecture | HC08 |
| Data Bus Width | 8b |
| Frequency | 3MHz |
| Height | 3.56mm |
| Interface | USB |
| Length | 27.17mm |
| Max Frequency | 3MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of Ethernet Channels | 0 |
| Number of I/Os | 13 |
| Number of I2C Channels | 0 |
| Number of Programmable I/O | 37 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 0 |
| Number of Timers/Counters | 2 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, LVD |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | HC08 |
| Watchdog Timer | Yes |
| Width | 6.6mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
NXP MC68HC908JB8JPE Datasheet
Download the complete datasheet for NXP MC68HC908JB8JPE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

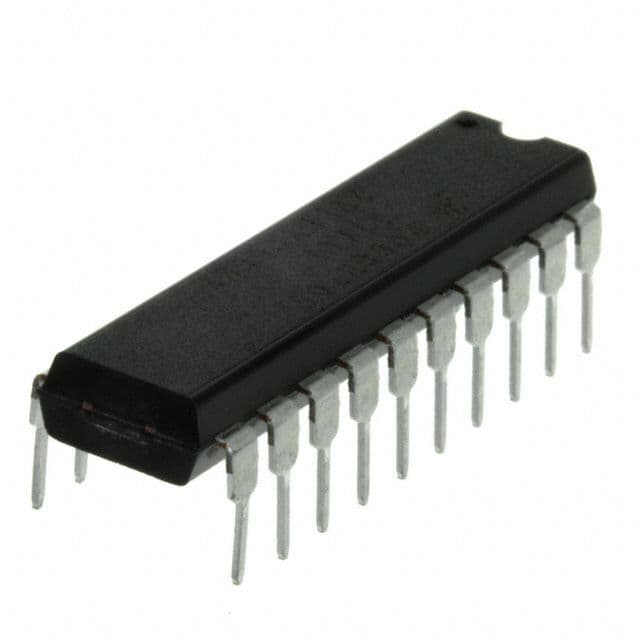

Product Images
