Positive voltage regulator IC, featuring a fixed 5V output with 2% accuracy. This linear voltage regulator offers a maximum output current of 1.5A and a dropout voltage of 2V. Designed for through-hole mounting in a TO package, it operates with an input voltage range of 7V to 35V and boasts a Power Supply Rejection Ratio (PSRR) of 68dB. The component supports a wide operating temperature range from -40°C to 125°C and is RoHS compliant.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7805ABV technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO |
| Dropout Voltage | 2V |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5V |
| Min Output Voltage | 5V |
| Mount | Through Hole |
| Nominal Output Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7805ABV Datasheet
Download the complete datasheet for Stmicroelectronics L7805ABV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

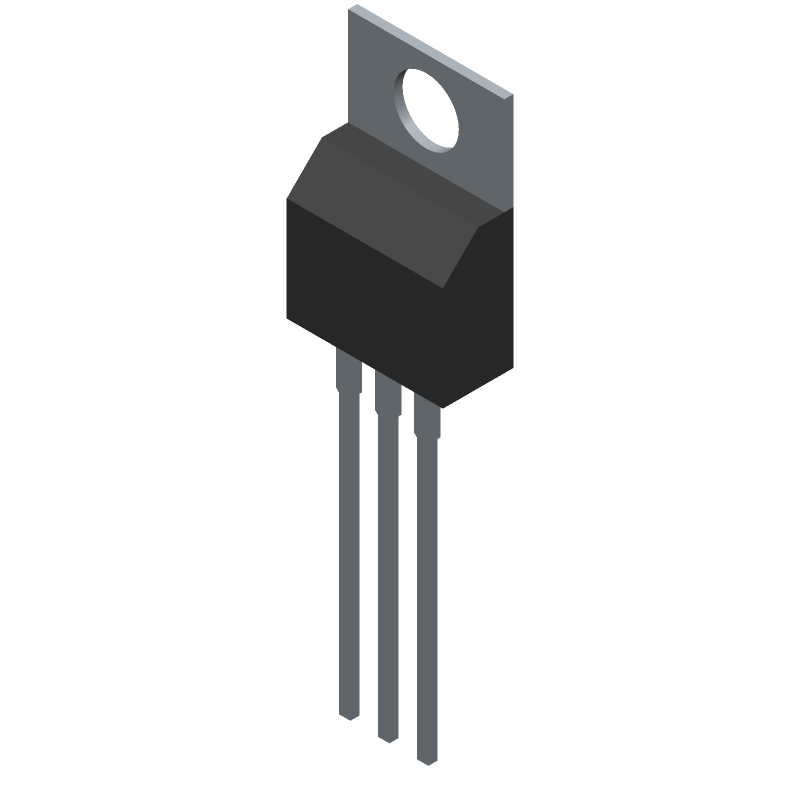

Product Images
