4-channel unidirectional digital isolator, 150Mbps data rate, 10.5ns propagation delay, and 2ns pulse width distortion. Features a 16-pin SOIC package with dimensions of 10.5mm length, 7.6mm width, and 2.35mm depth. Operates with a supply voltage range of 2.7V to 5V, consuming 1.2mA typical operating supply current. Supports a maximum operating temperature of 125°C and is RoHS compliant.
PackageSOIC
Current2.4mA
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO7641FMDW technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Unidirectional |
| Data Rate | 150Mbps |
| Depth | 2.35mm |
| Isolated Power | No |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Input Current | 10uA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 399mW |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 4 |
| Operating Supply Current | 1.2mA |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Polarity | Unidirectional |
| Propagation Delay | 10.5ns |
| Pulse Width Distortion (PWD) | 2ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2.4mA |
| Turn-On Delay Time | 7ns |
| Type | General Purpose |
| Weight | 0.019312oz |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ISO7641FMDW Datasheet
Download the complete datasheet for Texas Instruments ISO7641FMDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

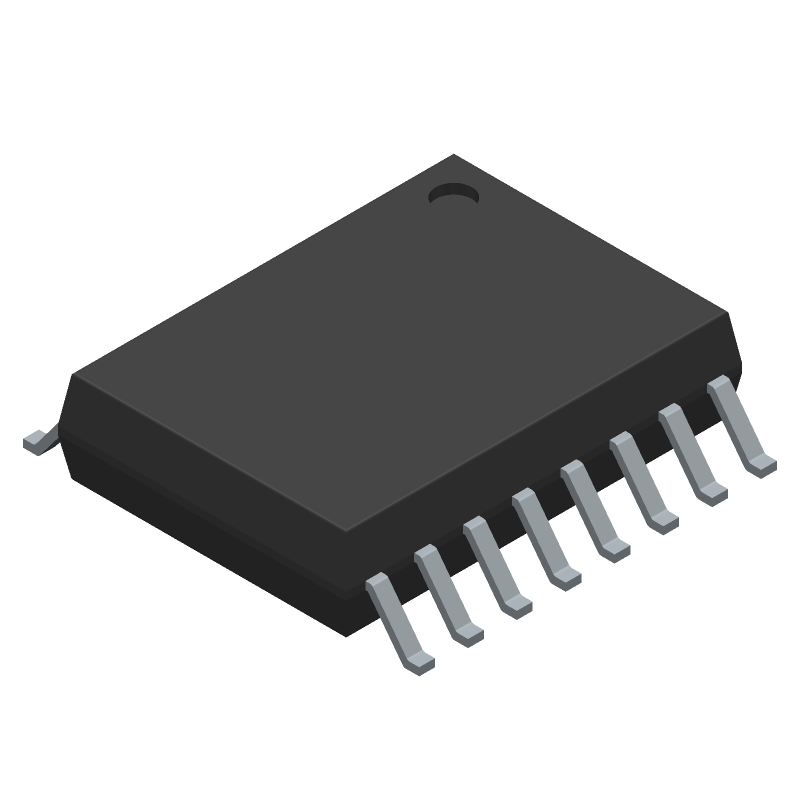

Product Images
