General purpose phototransistor optocoupler featuring a 1-channel, 1-circuit configuration within a 4-pin half-pitch mini-flat SMD/SMT package. Offers 2.5kV isolation voltage, 300mV collector-emitter saturation voltage, and a maximum collector current of 50mA. The device operates with a forward current of 50mA, a maximum output voltage of 80V, and a power dissipation of 150mW. This RoHS compliant component is designed for surface mounting and operates across a temperature range of -55°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Onsemi HMHA2801A technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 300mV |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 160% |
| Fall Time | 9000ns |
| Forward Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 80V |
| Package Quantity | 3000 |
| Packaging | Box |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| RoHS Compliant | Yes |
| Weight | 0.12g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi HMHA2801A Datasheet
Download the complete datasheet for Onsemi HMHA2801A to view detailed technical specifications.
No datasheet is available for this part.

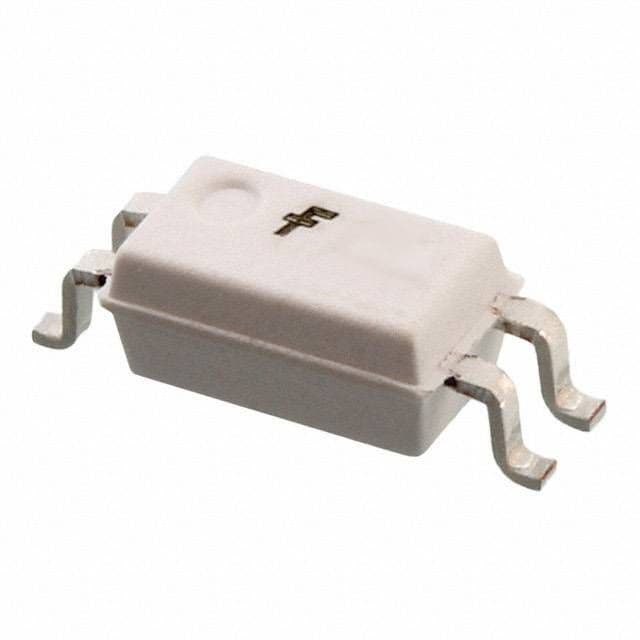

Product Images
