2.4 GHz radio transceiver IC featuring an 8051 microcontroller, 32KB flash memory, and full-speed USB interface. This surface-mount component operates within the 2.4GHz frequency band with a data rate of 500Kbps and a sensitivity of -103dBm. It offers 19 GPIO pins, SPI, USB, and USART interfaces, and operates from a 3V to 3.6V supply. The VQFN package measures 6mm x 6mm x 900um and is RoHS compliant.
Frequency2.4GHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2511F32RSPR technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Copper, Tin, Lead |
| Current - Receiving | 22.9mA |
| Current - Transmitting | 26mA |
| Data Bus Width | 8b |
| Data Rate | 500Kbps |
| Density | 256Kb |
| Frequency | 2.4GHz |
| Height | 900um |
| Interface | SPI, USB, USART |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 150°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4KB |
| Min Operating Temperature | -50°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of GPIO | 19 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 4KB |
| RoHS Compliant | Yes |
| Sensitivity | -103dBm |
| Technology | CMOS |
| Thickness | 850um |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CC2511F32RSPR Datasheet
Download the complete datasheet for Texas Instruments CC2511F32RSPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

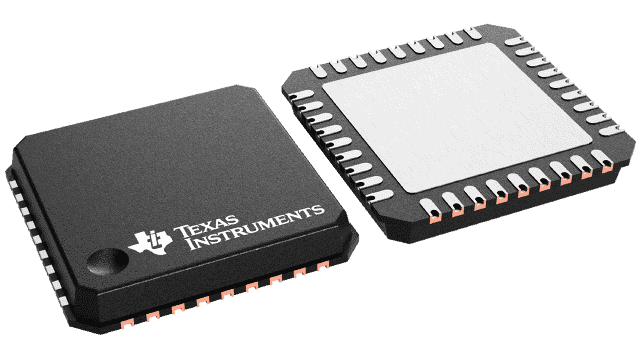

Product Images
