8-bit bidirectional transceiver, CMOS technology, featuring 5V tolerant inputs and outputs. Operates with a supply voltage range of 2V to 3.6V, with a nominal 3.6V. Offers 3-state outputs, 8ns propagation delay, and 10.5ns turn-on delay. This surface mount component has gold contact plating, is lead-free and RoHS compliant, and is supplied on a 3000-piece tape and reel.
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74LCX245BQX technical specifications.
General
| Contact Plating | Gold |
| Direction | Bidirectional |
| Height | 0.75mm |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 8ns |
| Quiescent Current | 10uA |
| RoHS Compliant | Yes |
| Series | 74LCX |
| Supply Voltage-Nom | 3.6V |
| Technology | CMOS |
| Turn-On Delay Time | 10.5ns |
| Weight | 0.123g |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 74LCX245BQX Datasheet
Download the complete datasheet for Onsemi 74LCX245BQX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

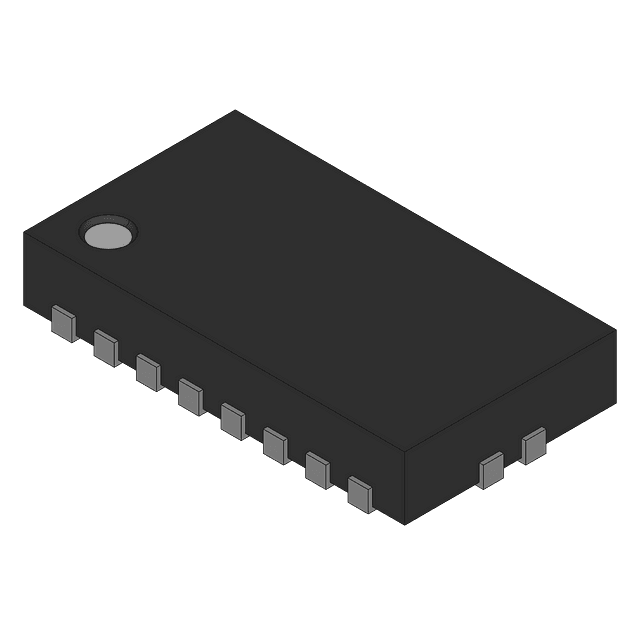

Product Images
