Radial fuse holder for 250V AC/DC applications, featuring a 6.3A current rating and a 0.2" (5.08mm) pitch. Constructed with UL94 V-0 rated white thermoplastic and copper alloy tin-plated contacts, this single-pole, single-circuit holder mounts vertically via through-hole PC pins. Its compact design measures 9.5mm in diameter, depth, and length, with illumination for enhanced visibility.
PackageRadial
Voltage250V
Voltage Rating250V
Current Rating6.3A
Quick Jump:
Technical Specifications
Littelfuse 56000001319 technical specifications.
General
| Body Material | Thermoplastic |
| Package/Case | Radial |
| Color | White |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 6.3A |
| Depth | 9.5mm |
| Diameter | 9.5mm |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 6.3A |
| Fuse Size | Radial 0.2 (5.08mm) Pitch |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Material | Thermoplastic |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Series | 560 |
| Termination | PC Pin |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 56000001319 Datasheet
Download the complete datasheet for Littelfuse 56000001319 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

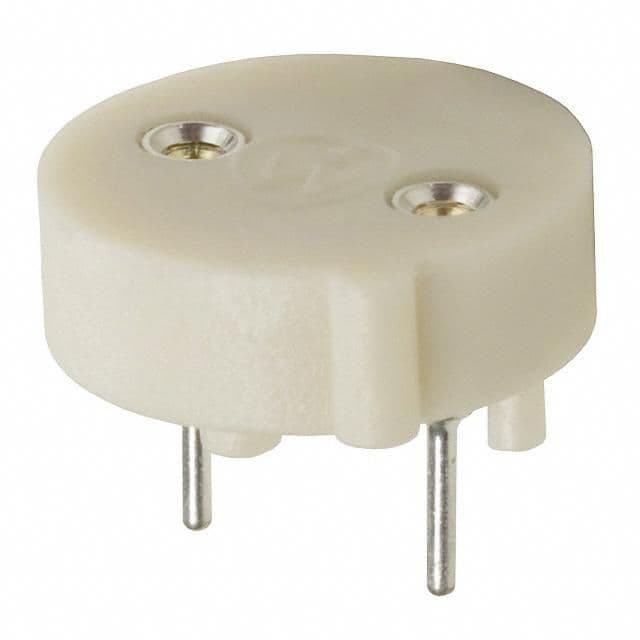

Product Images
