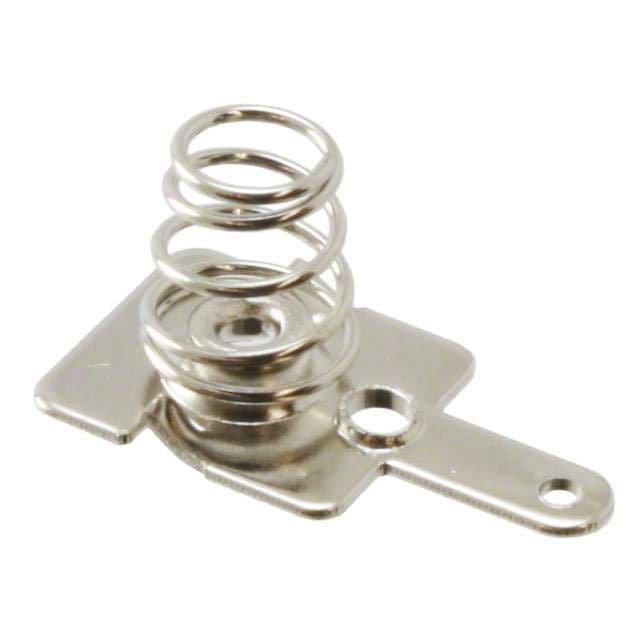

Steel battery spring contact for coin cell and cylindrical battery applications. Features nickel-plated steel body and contact for enhanced conductivity and corrosion resistance. Designed for AAA, AAAA, N, and 12V battery sizes, this spring contact offers a solder termination for secure connection. With a height of 0.409 inches and a thickness of 0.02 inches, it provides a compact solution. RoHS compliant and lead-free, supplied in bulk packaging of 100 units.
Quick Jump:
Technical Specifications
Keystone Electronics 5204 technical specifications.
General
| Body Material | Steel |
| Body Plating | Nickel |
| Contact Material | Steel |
| Contact Plating | Nickel |
| Contact Type | Spring |
| Height | 0.409inch |
| Lead Free | Lead Free |
| Material | Steel |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Thickness | 0.02inch |
| Width | 0.362inch |
Compliance
| RoHS | Compliant |
Datasheet
Keystone Electronics 5204 Datasheet
Download the complete datasheet for Keystone Electronics 5204 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
