Texas Instruments
UCC27611DRVR
4-A/6-A single-channel gate driver with 4-V UVLO and 5-V regulated output 6-WSON -40 to 140
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC27611DRVR technical specifications.
General
| Channel Type | Single |
| Fall Time | 5ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Output Current | 6A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 25ns |
| Turn-On Delay Time | 25ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCC27611DRVR Datasheet
Download the complete datasheet for Texas Instruments UCC27611DRVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

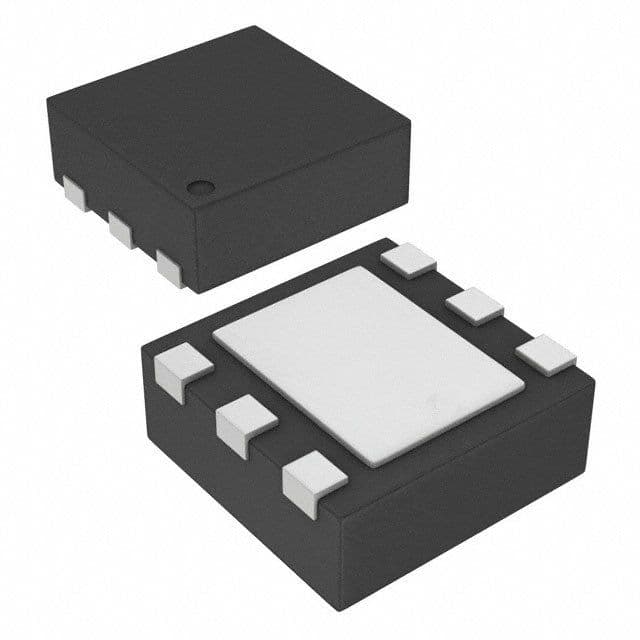

Product Images
