AEC-Q100 qualified, surface-mount Lithium-Ion battery charger IC with 1.5A max charge current and 4.2V output voltage. Features include USB interface, over voltage, over temperature, short circuit, and reverse current fault protection. Operates from -40°C to 125°C with a max supply voltage of 6.4V. Packaged in a 16-QFN with gold contact plating, supplied on tape and reel.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ24075QRGTRQ1 technical specifications.
General
| Battery Chemistry | LITHIUM-ION |
| Battery Pack Voltage | 4.2V |
| Package/Case | QFN |
| Contact Plating | Gold |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit, Reverse Current |
| Interface | USB |
| Lead Free | Lead Free |
| Max Charge Current | 1.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6.4V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Output Current | 1.5A |
| Output Voltage | 4.2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ24075QRGTRQ1 Datasheet
Download the complete datasheet for Texas Instruments BQ24075QRGTRQ1 to view detailed technical specifications.
No datasheet is available for this part.

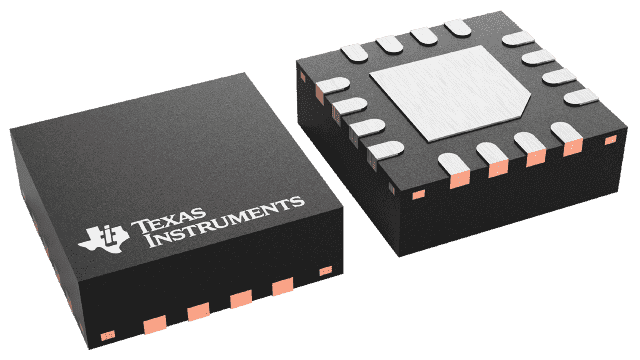

Product Images
