Texas Instruments
LM117HVHRQMLV
Space Grade 60V input 0.5A Adjustable Output Linear Regulator / LDO 3-TO -55 to 125
PackageTO-39
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM117HVHRQMLV technical specifications.
General
| Package/Case | TO-39 |
| Dropout Voltage | 1.5V |
| Lead Free | Contains Lead |
| Length | 8.255mm |
| Max Input Voltage | 60V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 57V |
| Package Quantity | 20 |
| Packaging | Tray |
| Polarity | Positive |
| Quiescent Current | 170uA |
| RoHS Compliant | No |
| Series | LM117HVQML-SP |
| Thickness | 4.445mm |
| Width | 8.255mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM117HVHRQMLV Datasheet
Download the complete datasheet for Texas Instruments LM117HVHRQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

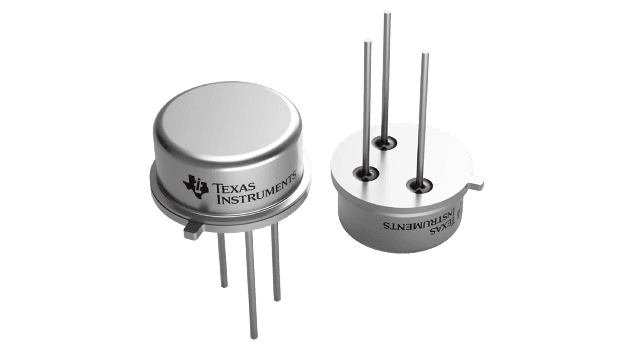

Product Images
