Frequency465kHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS51218DSCR technical specifications.
General
| Clock Sync | No |
| Duty Cycle | 91% |
| Height | 800um |
| Lead Free | Contains Lead |
| Length | 3mm |
| Max Frequency | 465kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6.5V |
| Output Configuration | Positive |
| Output Voltage | 2.6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 320uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | D-CAP™ |
| Synchronous Rectifier | Yes |
| Thickness | 750um |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS51218DSCR Datasheet
Download the complete datasheet for Texas Instruments TPS51218DSCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

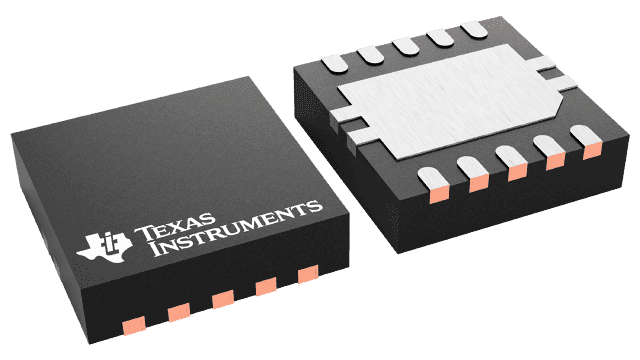

Product Images
