PackageDIP
Current1.06mA
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Power Integrations LNK500PN technical specifications.
General
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Duty Cycle | 80% |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 280mA |
| Output Power | 3W |
| Output Voltage | 5.6V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.06mA |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Power Integrations LNK500PN Datasheet
Download the complete datasheet for Power Integrations LNK500PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

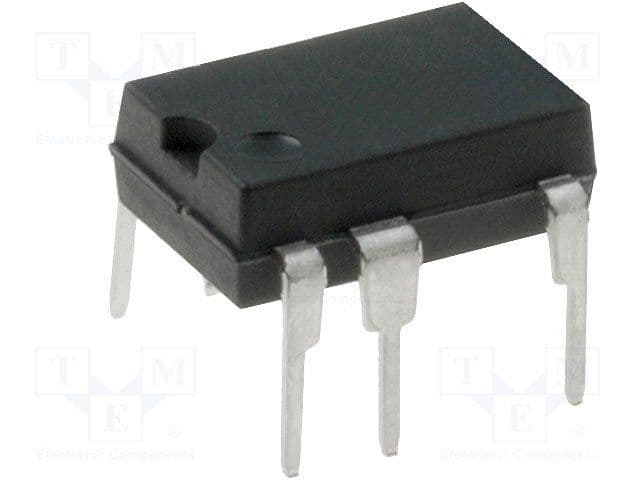

Product Images
