Single-channel LED driver with integrated boost controller, supporting analog and PWM dimming. Features a 1MHz operating frequency and SEPIC/Boost topology. Delivers up to 60V output voltage and 75mA output current via an OPEN-DRAIN output. Operates from a 5.5V to 36V input voltage range and is available in a surface-mount HTSSOP package.
Frequency1MHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LED6001 technical specifications.
General
| Package/Case | HTSSOP |
| Dimming | Analog, PWM |
| Frequency | 1MHz |
| Height | 1.05mm |
| Length | 5.1mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 5.5V |
| Max Input Voltage | 36V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 60V |
| Max Supply Current | 7mA |
| Max Supply Voltage | 36V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Segments | 1 |
| Operating Frequency | 1 MHz |
| Output Current | 75mA |
| Output Type | OPEN-DRAIN |
| Output Voltage | 60V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | SEPIC, Boost |
| Weight | 0.002212oz |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LED6001 Datasheet
Download the complete datasheet for Stmicroelectronics LED6001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

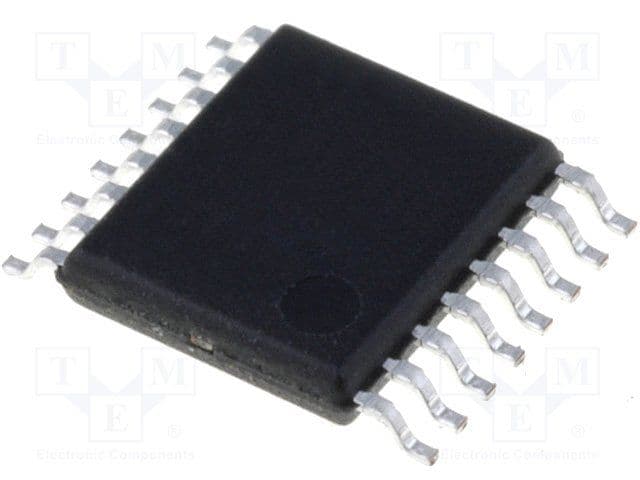

Product Images
