16-channel analog front end (AFE) with a single 12-bit analog-to-digital converter (ADC) and sixteen 12-bit digital-to-analog converters (DACs). Features a 1MS/s sampling rate, 70dB signal-to-noise ratio (SNR), and 6µs settling time. Operates with single-ended inputs and SPI interface, supporting a 2.5V to 5.25V input voltage range and 2.5V to 5V output voltage range. Housed in a 10mm x 10mm BGA package with 1.11mm height, and operates from -40°C to 85°C.
PackageBGA
Power25mW
Quick Jump:
Technical Specifications
Analog Devices AD5590BBCZ technical specifications.
General
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Converter Type | ADC |
| Height | 1.11mm |
| Input Capacitance | 20pF |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 3LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Input Voltage | 5.25V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5V |
| Min Output Voltage | 2.5V |
| Max Power Dissipation | 42.3mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 1.55mA |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Channels | 16 |
| Number of Converters | 1 |
| Number of D/A Converters | 16 |
| Number of Inputs | 16 |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 25mW |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 1MS/s |
| Settling Time | 6us |
| Signal to Noise Ratio (SNR) | 70dB |
| Slew Rate | 1.5V/µs |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD5590BBCZ Datasheet
Download the complete datasheet for Analog Devices AD5590BBCZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

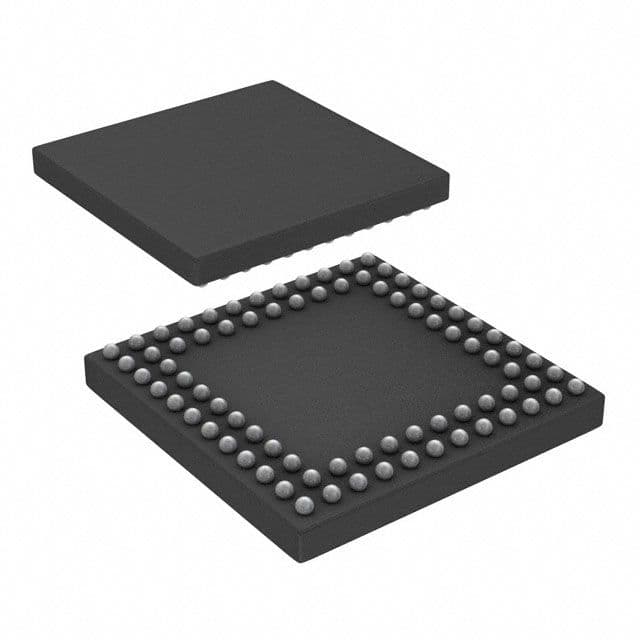

Product Images
