High efficiency single inductor buck-boost converter, featuring 96% peak efficiency and a 4A switch. This power management IC supports adjustable output voltages from 1.2V to 5.5V with a maximum output current of 3A. Operating across an input voltage range of 1.8V to 5.5V, it offers a 100% maximum duty cycle and a low quiescent current of 50µA. Packaged in a compact 3mm x 4mm x 1mm VSON surface mount package, this RoHS compliant component is ideal for space-constrained applications.
PackageVSON
Current50uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS63020DSJR technical specifications.
General
| Package/Case | VSON |
| Efficiency | 96% |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Duty Cycle | 100% |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.2V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 50uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 50uA |
| Synchronous Rectifier | Yes |
| Thickness | 900um |
| Topology | Buck-Boost |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS63020DSJR Datasheet
Download the complete datasheet for Texas Instruments TPS63020DSJR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

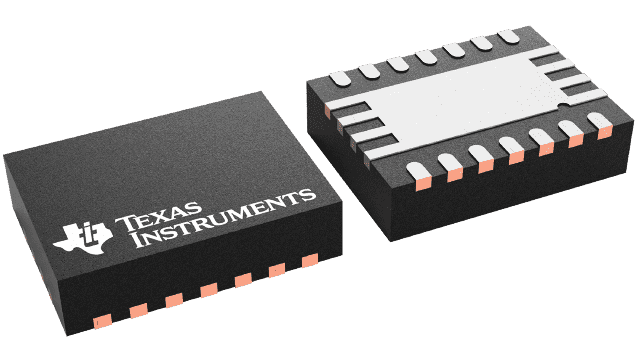

Product Images
