Texas Instruments
TLVH432AQPK
1-OUTPUT THREE TERM VOLTAGE REFERENCE, 1.24V, PSSO3, PLASTIC, SOT-89, 3 PIN
PackageTO-243AA
Quick Jump:
Technical Specifications
Texas Instruments TLVH432AQPK technical specifications.
General
| Package/Case | TO-243AA |
| Cathode Current | 100uA |
| Lead Free | Contains Lead |
| Max Input Voltage | 20V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 80mA |
| Max Output Voltage | 18V |
| Min Output Voltage | 1.24V |
| Output Current | 70mA |
| Output Type | Adjustable |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reference Type | Shunt |
| RoHS Compliant | Yes |
| Tolerance | 1% |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLVH432AQPK Datasheet
Download the complete datasheet for Texas Instruments TLVH432AQPK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

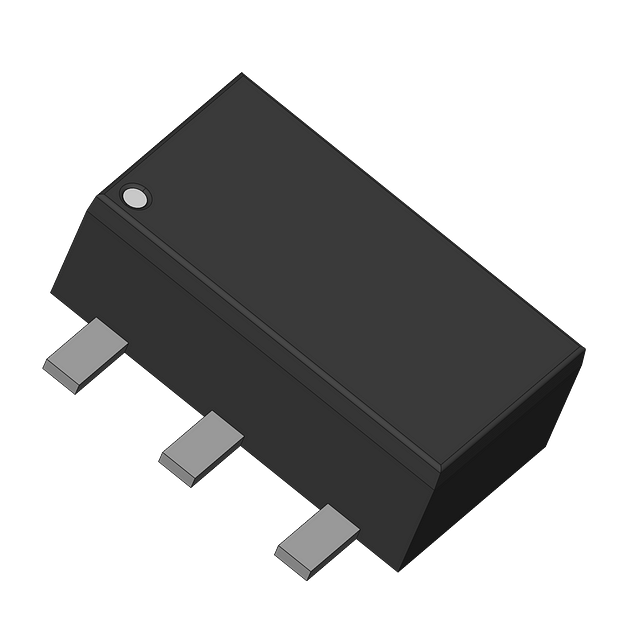

Product Images
