Technical Specifications
NXP MMA7361LR2 technical specifications.
General
| Axis | X, Y, Z |
| Bandwidth | 300Hz |
| Package/Case | LGA |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Output Type | Analog Voltage |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Sensitivity | 800mV/g |
| Supply Current | 400uA |
| Weight | 0.001164oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
NXP MMA7361LR2 Datasheet
Download the complete datasheet for NXP MMA7361LR2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

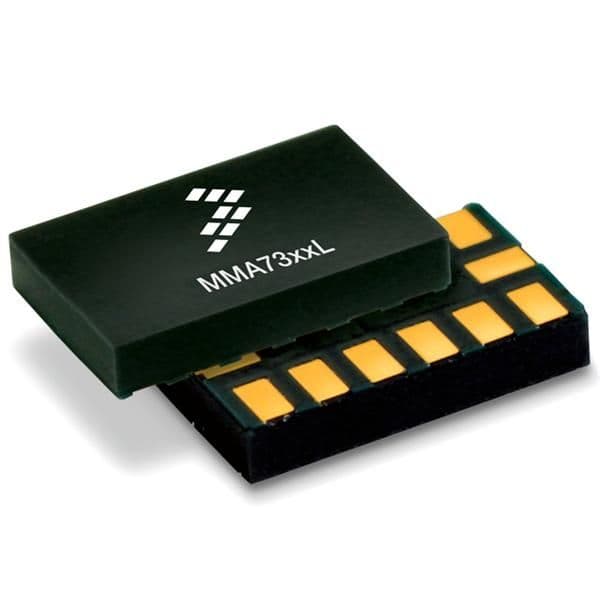

Product Images
