Adjustable positive linear voltage regulator, capable of delivering up to 1.5A output current. Features a wide input voltage range from 4.2V to 40V, with an adjustable output voltage from 1.25V to 37V. Offers a 2V dropout voltage and a PSRR of 65dB. Operates across a temperature range of 0°C to 125°C and is available in a TO-220 package for through-hole mounting. This RoHS compliant component provides a stable and adjustable power solution.
PackageTO-220
Current Rating1.5A
MountingThrough Hole, Surface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317KCS technical specifications.
General
| Package/Case | TO-220 |
| Current Rating | 1.5A |
| Dropout Voltage | 2V |
| Height | 8.7mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.25V |
| Mount | Through Hole, Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Quiescent Current | 3.5mA |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.3V |
| RoHS Compliant | Yes |
| Series | LM317 |
| Weight | 0.067197oz |
| Width | 4.58mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM317KCS Datasheet
Download the complete datasheet for Texas Instruments LM317KCS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

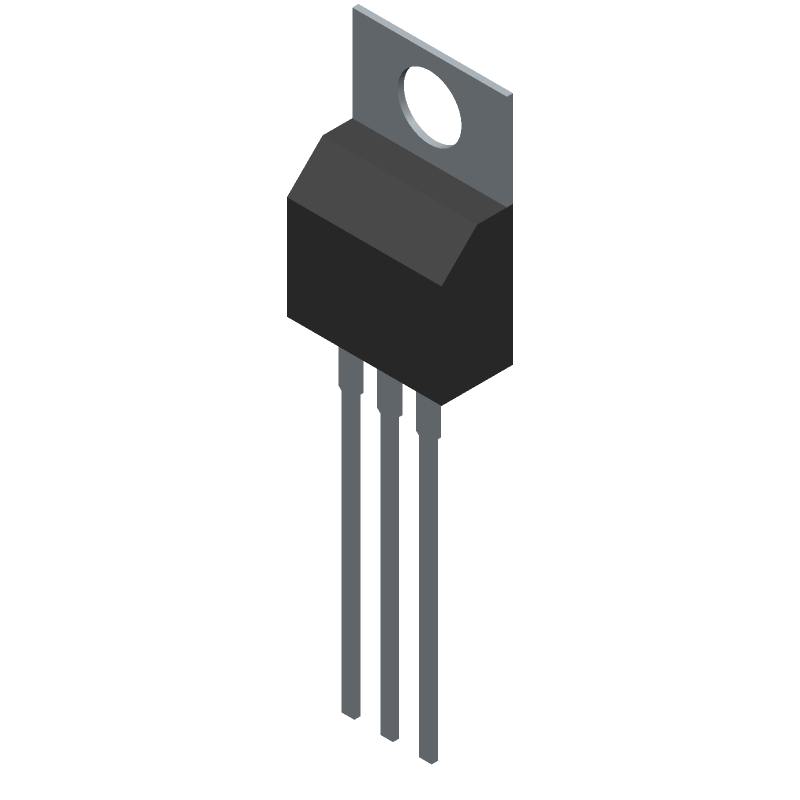

Product Images
