Adjustable positive linear voltage regulator, SOT-223 package, offering a 1A output current with a maximum input voltage of 40V and a minimum input voltage of 4.2V. Features a 2V dropout voltage and an adjustable output voltage up to 37V. Operates across a temperature range of 0°C to 125°C, with a quiescent current of 3.5mA and a PSRR of 80dB. Surface mountable, supplied on tape and reel.
PackageSOT-223
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317EMP technical specifications.
General
| Package/Case | SOT-223 |
| Current Rating | 1A |
| Dropout Voltage | 2V |
| Height | 1.8mm |
| Lead Free | Contains Lead |
| Length | 6.5mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Quiescent Current | 3.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Thickness | 1.6mm |
| Weight | 0.006632oz |
| Width | 3.5mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM317EMP Datasheet
Download the complete datasheet for Texas Instruments LM317EMP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

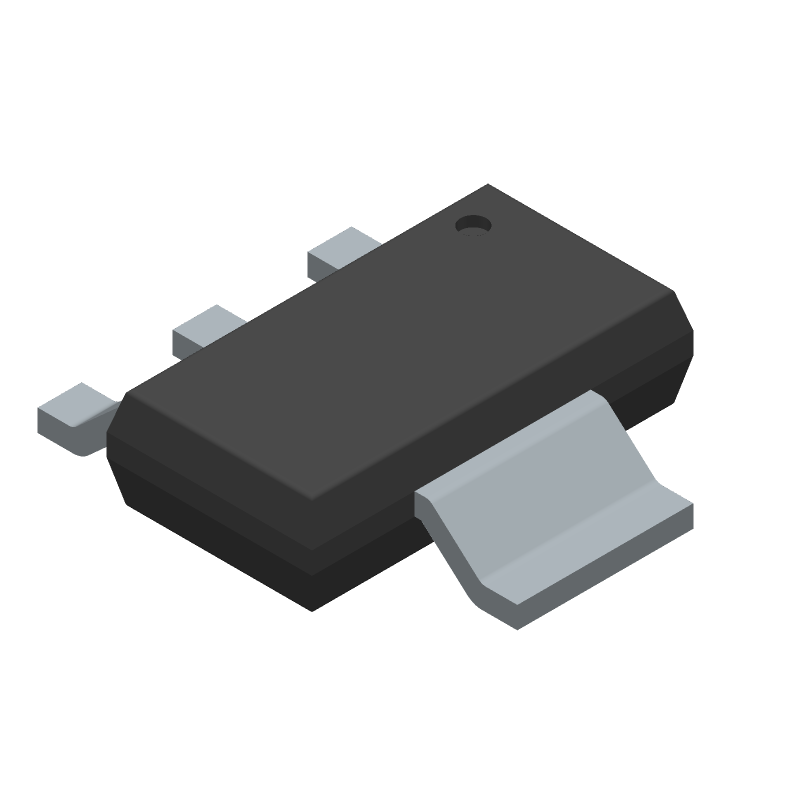

Product Images
