3-phase gate driver IC for Brushless DC (BLDC) motors, featuring integrated current shunt amplifiers and SPI interface. Operates with a supply voltage range of 6V to 60V, supporting a maximum collector current of 1.7A. This surface mount component is housed in a 48-HTSSOP package with dimensions of 12.6mm (L) x 6.2mm (W) x 1.05mm (H). It offers three outputs and functions across an operating temperature range of -40°C to 125°C, with NMOS technology. RoHS compliant and lead-free.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8303DCA technical specifications.
General
| Package/Case | HTSSOP |
| Height | 1.05mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 12.6mm |
| Max Collector Current | 1.7A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 6V |
| Motor Type | Brushless DC (BLDC) |
| Mount | Surface Mount |
| Number of Outputs | 3 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | NMOS |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV8303DCA Datasheet
Download the complete datasheet for Texas Instruments DRV8303DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

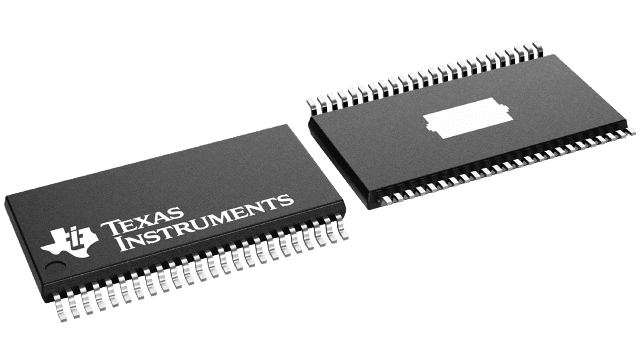

Product Images
