Quad operational amplifier featuring a 1.22MHz gain bandwidth product and 0.46V/µs slew rate. This general-purpose, micropower op amp offers 117dB voltage gain, 95dB CMRR, and 126dB PSRR. It operates from a 3V to 30V single supply or ±1.5V to ±15V dual supply, with a low 200µA quiescent current. The component boasts a 35µV input offset voltage and 50nA input bias current, packaged in an LFCSP EP with tin-matte plating.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices ADA4091-4ACPZ-R2 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.22MHz |
| Package/Case | LFCSP EP |
| Common Mode Rejection Ratio | 95dB |
| Contact Plating | Tin, Matte |
| Gain Bandwidth Product | 1.22MHz |
| Input Bias Current | 50nA |
| Input Offset Voltage (Vos) | 35uV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 200uA |
| Output Current per Channel | 20mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 126dB |
| Quiescent Current | 200uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.46V/µs |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 1.22MHz |
| Voltage Gain | 117dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADA4091-4ACPZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADA4091-4ACPZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

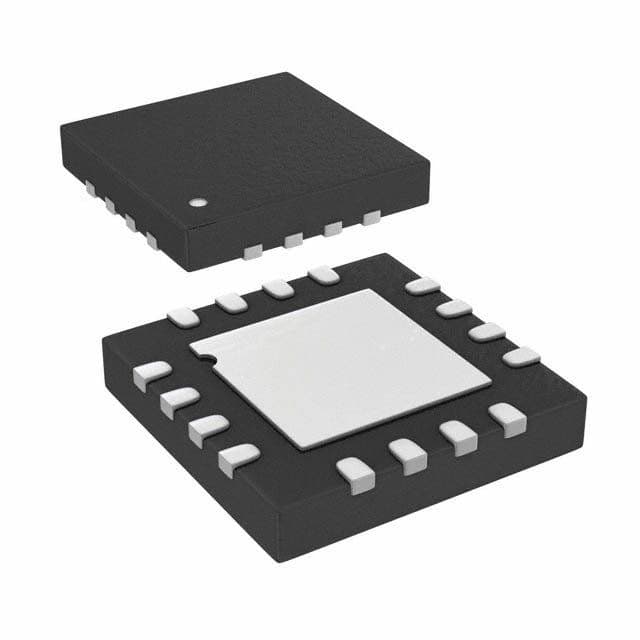

Product Images
